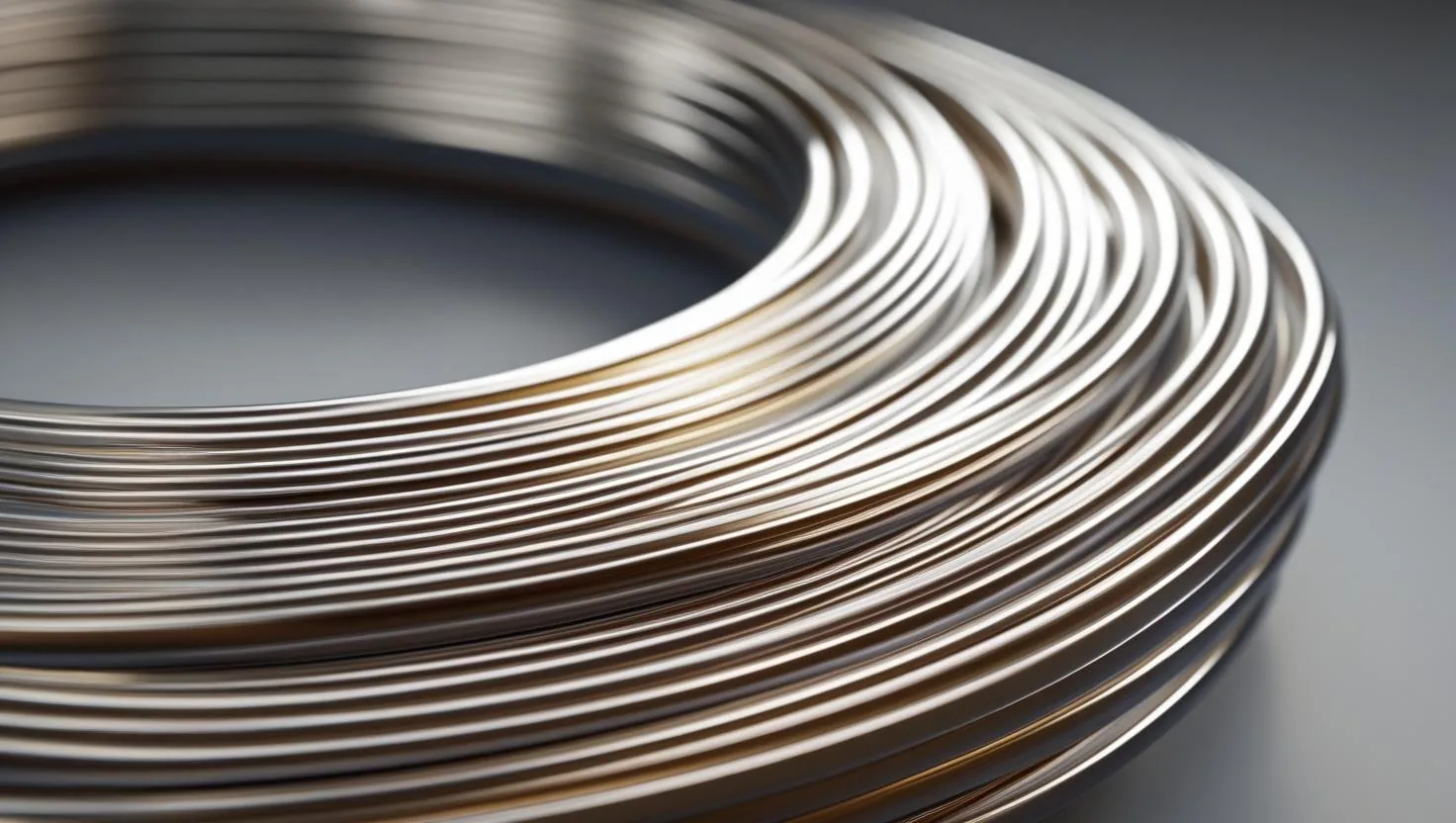

Inconel 718 Coil Supplier, Stockist and Exporter
Table of Contents
Aurico Alloys LLP supplies Inconel 718 coil, sheet and slit strip (N07718, Werkstoff 2.4668) to ASTM B670, B906 and AMS 5596 / 5597 from Mumbai, to customers across India and in more than 40 export markets.
718 strip is formed first and strengthened afterwards. Seals, brackets, flat springs, stiffeners and sheet-metal assemblies for aero engines and gas turbines are blanked and formed from solution-treated strip, welded where needed, and then aged – 718’s slow response to ageing is what lets that sequence run without strain-age cracking.
Sizes and Specifications
| Grade | Inconel 718 |
|---|---|
| UNS number | N07718 |
| Werkstoff (W.Nr.) | 2.4668 |
| Specifications | ASTM B670 (plate, sheet and strip); ASTM B906 (general requirements); AMS 5596 / 5597 (sheet, strip and plate) |
| Size range | Thickness 0.05 mm to 6.0 mm, width 3 mm to 1250 mm, supplied in slit coil, mill-edge coil or narrow strip. Coil weights and inside diameters are set to suit your decoiler. |
| Condition and finish | Available in annealed and pickled, bright annealed, cold rolled 2B, and No. 4 polished finishes, with edge condition slit, deburred or rolled to order. |
| Certification | EN 10204 3.1 mill test certificate; 3.2 and third-party inspection on request |
| Price | INR 4,000 – 7,500 per kg. Indicative USD 47 – 88 per kg; quoted against grade, form, size and quantity. |
Equivalent Grades & Standards
| Property | Value |
|---|---|
| UNS number | N07718 |
| Werkstoff / EN number | 2.4668 |
| Density | 8.19 g/cm3 |
| Melting range | 1260-1336 °C |
| Density (annealed and aged) | 0.297 lb/in³ (bulletin publishes no SI value for this condition) |
| Specific heat (21 °C) | 435 J/kg·°C |
| Curie temperature (annealed) | < -196 °C |
| Curie temperature (annealed and aged) | -112 °C |
| Magnetic permeability (200 oersted at 21 °C - annealed) | 1.0013 |
| Magnetic permeability (200 oersted at 21 °C - annealed and aged) | 1.0011 |
| Plate, sheet and strip specification | ASTM B670 / B906 / AMS 5596 / 5597 |
Identifiers and physical constants for Inconel 718. A dash means no such designation is published for this grade.
Chemical Composition
| Element | Min (%) | Max (%) |
|---|---|---|
| Ni+Co | 50.0 | 55.0 |
| Chromium (Cr) | 17.0 | 21.0 |
| Iron (Fe) | — | Balance |
| Niobium + Tantalum (Nb+Ta) | 4.75 | 5.50 |
| Molybdenum (Mo) | 2.80 | 3.30 |
| Titanium (Ti) | 0.65 | 1.15 |
| Aluminium (Al) | 0.20 | 0.80 |
| Cobalt (Co) | — | 1.0 |
| Copper (Cu) | — | 0.30 |
| Carbon (C) | — | 0.08 |
| Manganese (Mn) | — | 0.35 |
| Silicon (Si) | — | 0.35 |
| Phosphorus (P) | — | 0.015 |
| Sulfur (S) | — | 0.015 |
| Boron (B) | — | 0.006 |
Composition limits for Inconel 718. These are specification limits for the grade, not measured values for a lot; the mill test certificate supplied with your order states the actual analysis.
Mechanical and Physical Properties
Strip is supplied solution treated for forming. After ageing, 718 reaches around 1275 MPa tensile with yield above 1030 MPa and holds high strength to around 700°C – which is what a formed spring or seal made from strip is designed on.
Industry Applications
Why Inconel 718 coil
Strip in 718 is for parts that must be strong and are too thin to machine. A flat spring or a seal ring cannot be cut from bar economically, and an annealed alloy would not hold the load; formed 718 strip, aged after forming, does both. One caution on specifications: AMS 5950 also covers 718 sheet and strip, but for 718SPF, a superplastic-forming variant – order to AMS 5596 or 5597 for standard 718.
| Industry | Typical use |
|---|---|
| Aerospace | Seals, brackets, stiffeners and sheet-metal assemblies formed then aged. |
| Springs | Flat springs and spring washers that carry load at temperature. |
| Power generation | Gas-turbine sheet-metal parts below about 700°C. |
| Oil and gas | Formed high-strength parts for sour service. |
Testing and Certification
Coil is supplied with an EN 10204 3.1 mill test certificate stating heat number, chemical analysis, condition and mechanical properties, and can be certified to AMS 5596 or 5597. Thickness and width are checked against the order, with positive material identification and third-party inspection under our ISO 9001:2015 system.
Frequently Asked Questions
Request a Quotation
Send your size, quantity and specification and we will come back with price and lead time, usually the same working day. Call +91 7977 88 6611 or email info@auricoalloys.com.
