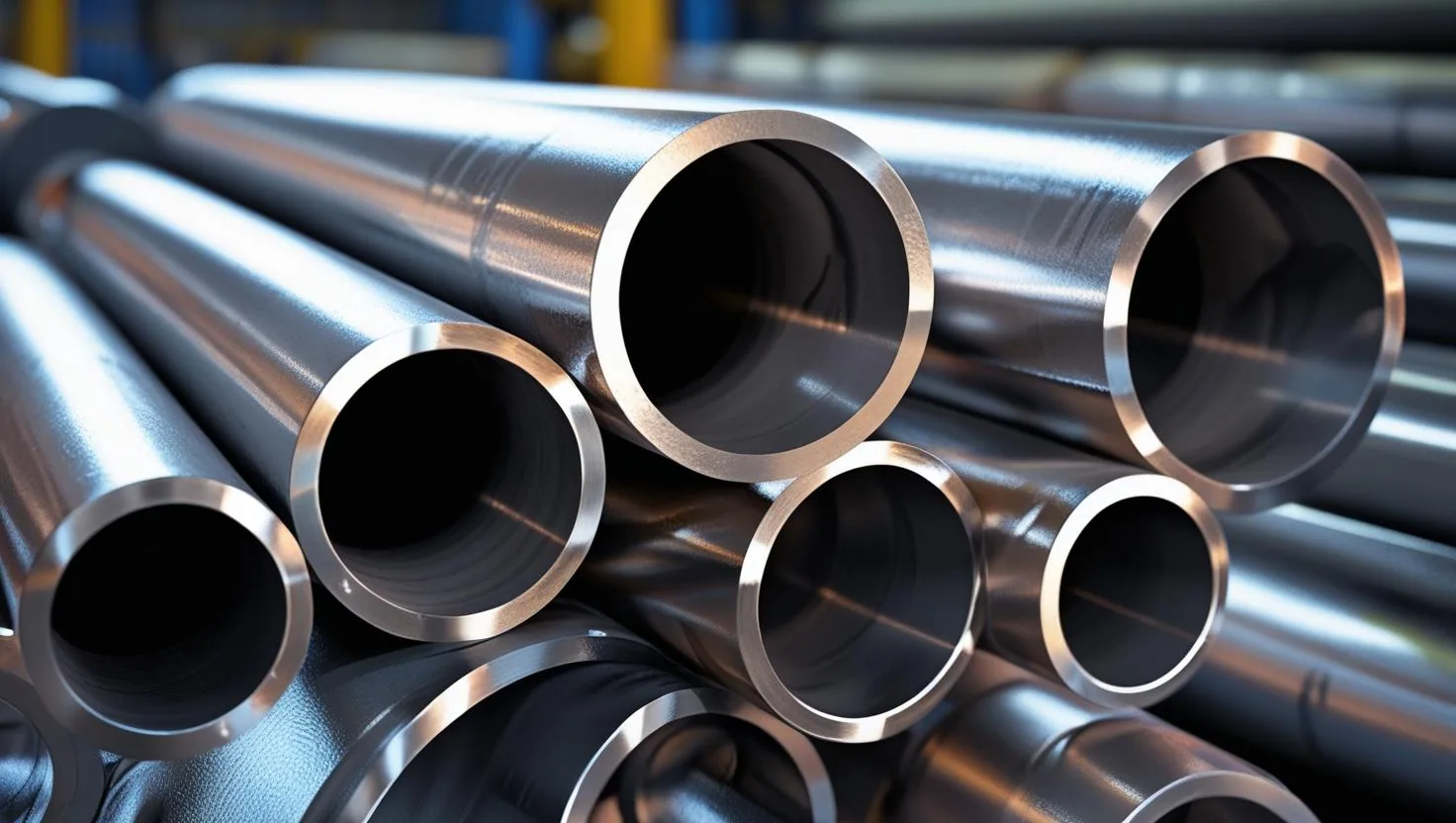

Inconel 600 Pipes Supplier, Stockist and Exporter
Table of Contents
Aurico Alloys LLP supplies Inconel 600 pipe (N06600, Werkstoff 2.4816) to ASTM B167 from Mumbai, to customers across India and in more than 40 export markets.
A 600 pipe line is usually carrying one of three things: hot caustic soda, a chlorinated process stream, or furnace gas. All three crack or scale ordinary austenitic stainless, and all three are what 600’s 72% nickel was chosen to handle. Pipe is specified by nominal bore and schedule, so the wall is set by design pressure plus a corrosion allowance – and in caustic service the allowance on 600 can be kept small.
Sizes and Specifications
| Grade | Inconel 600 |
|---|---|
| UNS number | N06600 |
| Werkstoff (W.Nr.) | 2.4816 |
| Specifications | ASTM B167 (seamless pipe and tube) |
| Size range | Nominal bore 1/8" to 30" in Sch 5S through Sch XXS, seamless and welded (ERW / EFW), single random, double random and cut lengths. |
| Condition and finish | Annealed and pickled, bright annealed or polished, with plain, bevelled or threaded ends. |
| Certification | EN 10204 3.1 mill test certificate; 3.2 and third-party inspection on request |
| Price | INR 3,000 – 6,500 per kg. Indicative USD 35 – 76 per kg; quoted against grade, form, size and quantity. |
Equivalent Grades & Standards
| Property | Value |
|---|---|
| UNS number | N06600 |
| Werkstoff / EN number | 2.4816 |
| Density | 8.47 g/cm3 |
| Melting range | 1354-1413 °C |
| Specific heat | 444 J/kg·°C |
| Electrical resistivity | 1.03 µΩ·m |
| Curie temperature | -124 °C |
| Magnetic permeability (at 200 oersted / 15.9 kA/m) | 1.010 |
| Pipe and tube specification | ASTM B167 |
Identifiers and physical constants for Inconel 600. A dash means no such designation is published for this grade.
Chemical Composition
| Element | Min (%) | Max (%) |
|---|---|---|
| Ni+Co | 72.0 | — |
| Chromium (Cr) | 14.0 | 17.0 |
| Iron (Fe) | 6.0 | 10.0 |
| Carbon (C) | — | 0.15 |
| Manganese (Mn) | — | 1.0 |
| Sulfur (S) | — | 0.015 |
| Silicon (Si) | — | 0.50 |
| Copper (Cu) | — | 0.50 |
Composition limits for Inconel 600. These are specification limits for the grade, not measured values for a lot; the mill test certificate supplied with your order states the actual analysis.
Mechanical and Physical Properties
Annealed 600 pipe runs roughly 550–690 MPa tensile with yield near 240 MPa, so it is a moderate-strength line material: the schedule is chosen for pressure, not the alloy for strength. It holds its oxidation resistance in continuous service to roughly 1090°C, which is why it is used for hot gas lines that a 304 or 316 line would scale through.
Industry Applications
Why Inconel 600 pipe
The case for 600 pipe is caustic and chloride stress-corrosion cracking. Where hot caustic soda or a chlorinated stream would crack a stainless line at the welds, 600 does not, and it costs less than the molybdenum-bearing grades because it has no molybdenum to pay for. That same absence means it is the wrong pipe for seawater or reducing acids – for those, 625 pipe is the step up.
| Industry | Typical use |
|---|---|
| Chlor-alkali | Caustic soda transfer and evaporator lines, including concentrated caustic above the temperature where nickel-free alloys crack. |
| Chemical processing | Chlorination plant and chlorinated-hydrocarbon process piping to around 538°C. |
| Heat treatment | Furnace gas and endothermic-atmosphere lines exposed to carburising and nitriding conditions. |
| Food processing | Process lines handling organic acids and chloride-bearing media. |
Testing and Certification
Pipe ships with an EN 10204 3.1 mill test certificate stating heat number, chemical analysis and mechanical properties. Hydrostatic testing, ultrasonic examination of the wall, dye-penetrant testing of the ends and positive material identification are available on request, as is ASTM G28 intergranular corrosion testing for caustic duty. Third-party inspection by Lloyd’s Register, Bureau Veritas, SGS or TÜV can be arranged under our ISO 9001:2015 system.
Frequently Asked Questions
Request a Quotation
Send your size, quantity and specification and we will come back with price and lead time, usually the same working day. Call +91 7977 88 6611 or email info@auricoalloys.com.
